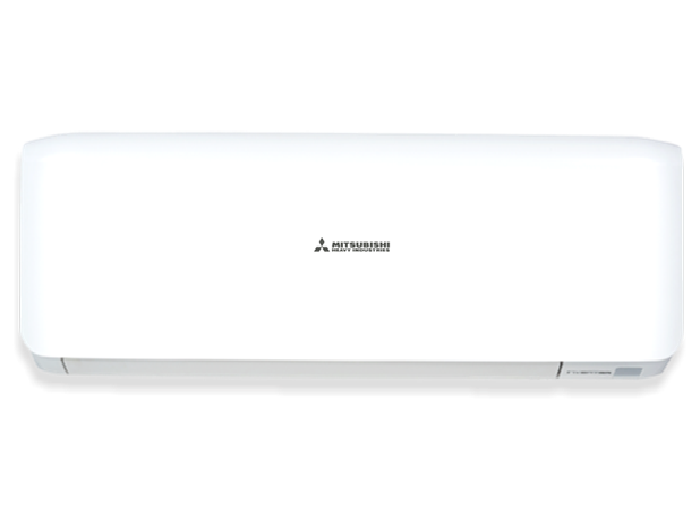

SRK 13YXS-W6 ( TON : 1.1 )

MRP 50,490.00

ECO SMART HYPER INVERTER (COOLING ONLY) Presenting India’s Highest Energy Efficient 1.1 Ton Eco Smart Hyper Inverter AC With R32 Refrigerant & Maximum 4.7 EER.

Add to Wishlist
Add to Wishlist
Categories: ,

Description

BEE STAR RATING 5 STAR
COMPRESSOR TYPE Super Tropical – Rotary
VFD – VARIABLE FREQUENCY DRIVE INVERTER VECTOR CONTROL TECHNOLOGY FOR HIGHER EFFICIENCY
MINIMUM COMPRESSOR RPM 7 – 15 RPM – USING VECTOR CONTROL TECHNOLOGY
REFRIGERANT  VOLUME CONTROL USING MOTORIZED ELECTRONIC EXPANSION VALUE FOR V ARIABLE REFRIGERANT FLOW
LCD REMOTE CONTROL ( ipM CONTROLLER ) ipM ( INTELLIGENT POWER MODULE )
POWER SOURCE 1 PHASE, 220/230 V, 50 HZ
MAXIMUN COOLING CAPACITY AT*** BTU / hr 15013
RATED COOLING CAPACITY AT 100% 13000
RATED COOLING CAPACITY AT 50% 6517
MAXIMUN COOLING CAPACITY AT*** Watts 4400
RATED COOLING CAPACITY AT 100% 3810
RATED COOLING CAPACITY AT 50% 1910
RATER POWER CONSUMPTION AT 100% Watts 1000
RATER POWER CONSUMPTION AT 50% 332
RATED EER / COP AT 100% W/w 3.8
RATED EER / COP AT 50% 5.8
RATED INDIAN SEASONAL ENERGY EFFICIENCY ISEER 5.1
CURRENT ( MINIMUM – MAXIMUM ) A 0.70~4.8
DIMENSION ( H * W * D ) INDOOR UNIT mm 290 X 870 X 230
OUTDOOR UNIT mm 540 X 645(+57) X 275
WEIGHT INDOOR UNIT Kgs 10
OUTDOOR UNIT Kgs 27
COOLING COIL ROW INDOOR UNIT NO.S 2
AIR FLOW INDOOR UNIT CMH 850
LONG REACH AIRFLOW UPTO INDOOR UNIT Meters 5.18
SELF DIAGNOSIS FUNCTION INDOOR UNIT YES
SOUND LEVEL ( H /M/ L ) INDOOR UNIT Db 41/35/29/19(U-low)
LOUVER SWING INDOOR UNIT 3D+3D AUTO
SPECIAL FILTER INDOOR UNIT Enzyme+Solar (Deodorising Filter)+ Anti Bacterial – Filters
 BLOWER FAN INDOOR UNIT Anti – Micro Bial Fan
DC FAN MOTOR SPEED INDOOR UNIT Auto / Power / High /Med /Low / ULO(Silent  Mode)/DRY
REFRIGERANT PIPING THICKNESS : 18 GAUGE ( 1mm ) LIQUID LINE mm 6.35 ( 1 / 4″ )
GAS LINE mm 9.52 (3/8″)
MAIN POWER SUPPLY TO OUTDOOR UNIT 2.5 mm * 3 cores (With Earthing Cable)
CONNECTING WIRING B / W IDU & ODU 2.5 mm * 4 cores ( With Earthing Cable )
AREA COVERAGE*** Sq.Meters 12.0~15.7
