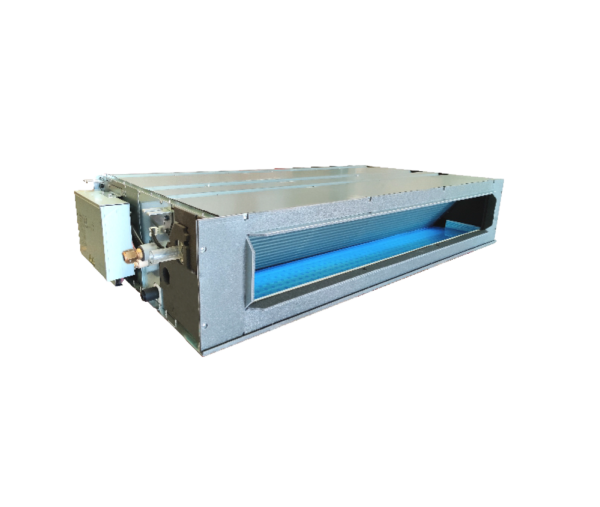

Model – Indoor Unit: FDU100CR-S
Model – Outdoor Unit: FDC100CR-S
Super Tropical – Return Cooled Compresser: Scroll
Type of AC: Hybrid AC
Power Source: 3 Phase, 380 to 440V,50Hz
Maximum Cooling Capacity – Ton: 3.0
Maximum Cooling Capacity – Watts: 10550
Maximum Cooling Capacity – BTU/hr: 36000
Maximum EER/COP* 3.51
Rated Cooling Capacity – Ton: 3.0
Rated Cooling Capacity – Watts: 10000
Rated Cooling Capacity – BTU/h: 34120
Input Power**(Minimum to Maximum) -Watts : 3000 to 32226
Rated EER/COP – W/w: 3.10
Air Flow – Indoor unit – CMH: 1950(P-Hi-2340)
Long Reach Airflow Upto – Indoor unit – Meter: 6.09
Sound Level(H/M/L) – Indoor unit – dB: 44/38/36/30
Louver Swing – Indoor unit: Not Applicable
Remote Control – Indoor unit: Standard – Wireless Remote Controller Included/Wired Controller Optional

Self Diagnosis Function – Indoor unit: Yes
Filter – Indoor unit: Anti – Backterial Wiremesh Filter – Optional – Chargeable Extra – Procure Locally
Fan – Indoor unit: Centrifugal Blowerr
DC Fan Motor Speed – Indoor unit: Auto/High/Medium/Low/Dry
E.S.P(Pascal)# – Pa: Standard = 60 Pa / Max = 100 Pa
Dimension(H*W*D) – Indoor unit – mm: Unit-280*1370*740
Dimension(H*W*D) – Outdoor unit – mm:  845*970*370
Weight – Indoor unit – Kgs : 54
Weight- Outdoor unit – Kgs : 78
Refrigerant: R410A
Refrigerant Piping – Liquide/Gas – mm: 9.52(3/8″)/15.88(5/8″)
Refrigerant Piping Lengths – Mtrs: 50 mtrs/164 feet
Refrigerant Height Difference – Mtrs: Outdoor – Higher = 30 mtrs / lower = 15 mtrss
Manpower Supply To – Out Door Unit: 4mm² * 5 cores(including earthing)
Connecting Wiring Between – B/w IDU & ODU:1.5mm² * 4 cores(including earthing)
Area Coverage*** – Sq Meter: 25.54 to 32.51
